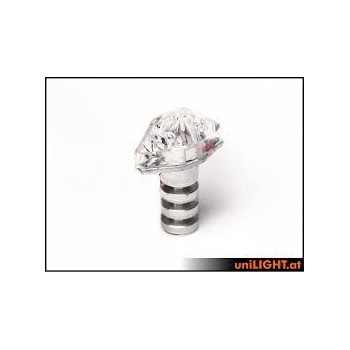

UniLIGHT - 8mm MINI Strobe Light,4W, SHORT Color: WHITE

Set for the do-it-yourself construction of cost-effective and small navigation lights in a short version with slightly reduced performance. Ideal for smaller models but still great luminosity.

The set consists of two lights with heatsink and caps, a bunch of cables, resistors for operation with 6V, 8V(2S) and 12V(3S). The lights only have to be wired in the model.

Please also note that high-performance LEDs can get very hot, up to 70°C is quite normal. Please check operation temperatures after installation.

Technical Data

Electricity: 4W reference power, 8(12)V, 0.35A

Beam angle: >160°
Light intensity: ~50 Lumen RED
Light intensity: ~80Lumen GREEN
Light intensity: 100 Lumen WHITE
Dimension cap: 8x18x9
Dimension cooling pin: D7x14
Weight: 2.5g (without cable)
