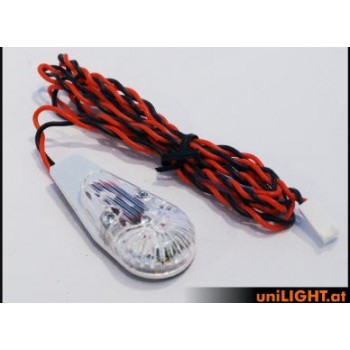

UniLIGHT - PRO24F-080x2-GN 8Wx2 Position-/Navigation Light, 24mm, T-Fuse - Verde

Profiled high-performance spotlight with doubled efficiency 8Wx2 and very good beam angle through a special spreading cap. The luminaire is delivered as a ready assembled unit on an aluminium cooling plate and a changeable polycarbonate cap as covering. The luminaire is ready to use for 2S Lipo (ca. 8V) operation. With 3S (12V) operation, the enclosed resistor has to be used. Alternatively use a 8W-3S adapter cable.

Please note that high-performance LEDs can get very hot, up to 70°C is quite normal. These lamps with heatsink housings are suitable for continuous operation if an air flow (during flight) is possible. If this is not the case, the duty cycle of 5-10 minutes should not be exceeded. Please check operation temperatures after installation. In case of overheating, the integrated overtemperature switch will switch off or downsampling the luminaire.

Technical Data

Electricity: 8W reference power, 8(12)V, 0.7A
Beam angle: >160°
Light intensity: ~160 Lumen RED
Light intensity: ~280 Lumen GREEN
Light intensity: ~400 Lumen WHITE
Dimension base plate: 24x56x9mm
Thickness assembly plate: 2mm
Weight: 11g (without cable)
Delivery: ready to use with 1m connection cable and ready made series resistor for 2S and enclosed resistor for 3S
