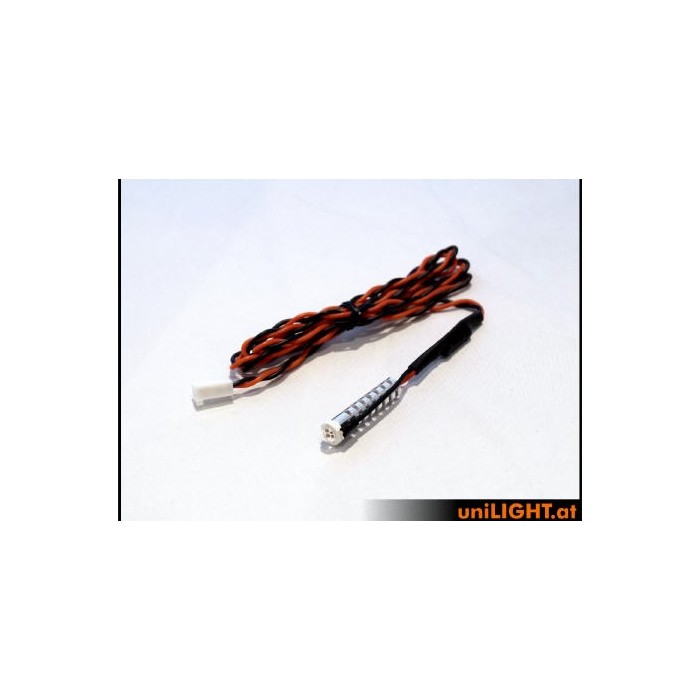

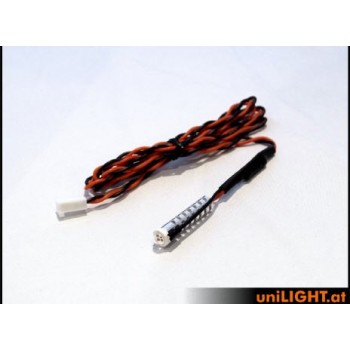

UniLIGHT - PURE-040x2-RT 4Wx2

Universal light with ultrapower as STROBE light only, for installation behind existing glass cap, mostly on wingtips, rudder or special DIY solutions. The module is being delivered completely prewired on a special shaped aluminium heatsink.

Please note that high-performance LEDs can get very hot, up to 70°C is quite normal. In delivery state, these lamps must be operated only as STROBE light, pay attention to a slight air flow. Please check operation temperatures after installation and ensure sufficient air cooling.

Technical Data

Electricity: 4W reference power, 8(12)V, 0.35A
Beam angle: ~160°
Light intensity: ~200 Lumen RED
Light intensity: ~300 Lumen GREEN
Light intensity: ~400 Lumen WHITE
Dimension bolt : D17x30mm
Dimension chip: D8mm
Weight: 2g (without cable)
Delivery: ready to use with 1m connection cable and series resistor for 2S, resistor for 3S enclosed
