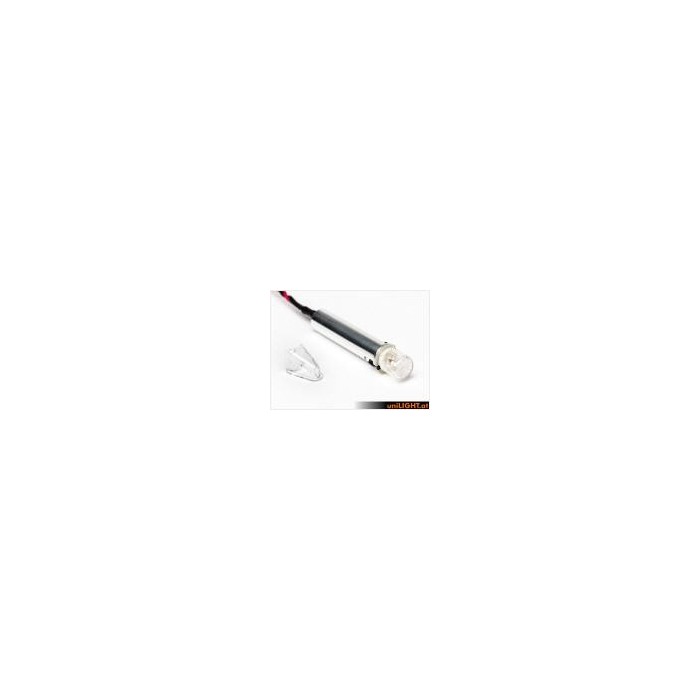

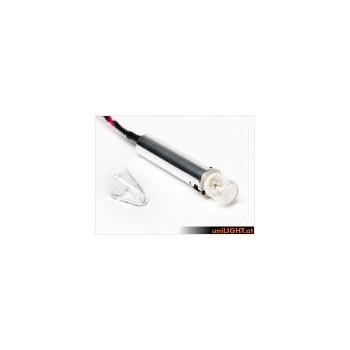

UniLIGHT - SLIMF-040x2-GN 4Wx2 Power Navigation Light, 10mm, T-Fuse

New chip generation 4Wx2 reference power navigation light with wide beam angle through a specialspreading cap. The slim light is delivered as a ready assembled unit on a special, CNC manufactured aluminium tube and a permanently mounted polycarbonate cap as covering. The luminaire is ready to use for operation with 2S LiPo (ca. 8V). With 3S (12V), the enclosed resistor has to be used. Alternatively you can use a 4W-3S adaption cable.

Additionally, the scope of delivery contains another cap of polycarbonate, which transforms the luminaire into a profiled/drop-shaped outside light. The cap can be separately glued in and individually varnished in the model colour.

Please note that high-performance LEDs can get very hot, up to 70°C is quite normal. These 4Wx2 luminaires are suitable for model airplanes as navigation light for a constant operation of 5-8 minutes. Please check operation temperatures and check for slight air flow cooling. The integrated temperature sensor will switch off the light in case of overheating, thus the usage as powerful position light is possible.

Technical Data

Electricity: 8W reference power, 8(12)V, 0.35A
Beam angle: >160°
Light intensity: ~100 Lumen RED
Light intensity: ~140 Lumen GREEN
Light intensity: ~190 Lumen WHITE
Dimension cooling tube: D10x45mm, flange D12mm
Dimension light cap: D10x12.5mm, flange for carrier D12mm
Total mass: D10/12mm, 57.5mm length
Weight: 5g (without cable)
Delivery: ready to use with 1m silicon cable and series resistor for 2S, resistor for 3S enclosed, profiled expansion cap
