UniLIGHT - 10mm PIN Navigation Light, 4W-RT

Set for the do-it-yourself construction of cost-effective and small navigation lights in a short version with slightly reduced performance. Ideal for smaller models but still great luminosity.

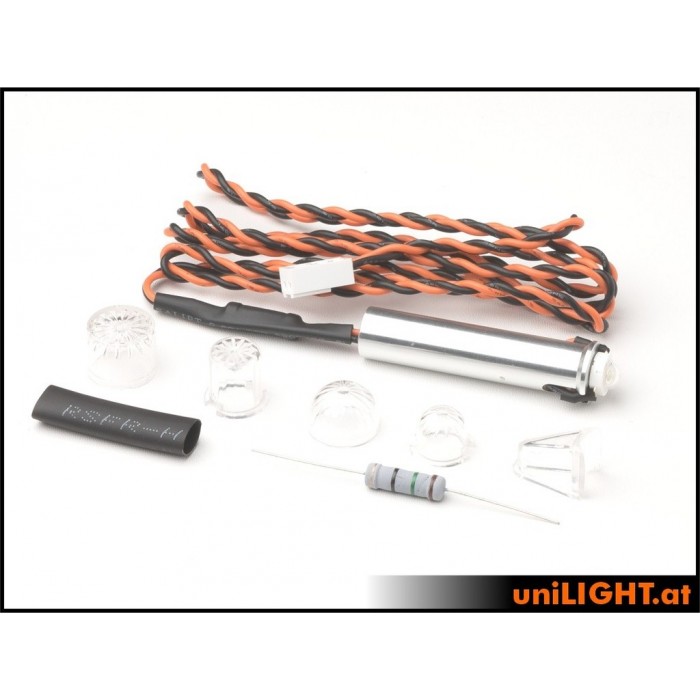

The set consists of two lights with heatsink and caps, a bunch of cables, resistors for operation with 6V, 8V(2S) and 12V(3S). The lights only have to be wired in the model.

Please also note that high-performance LEDs can get very hot, up to 70°C is quite normal. Please check operation temperatures after installation.

Technical Data:

Electricity: 4W reference power,
Voltage: 8(12)V, 0.35A
Beam angle: >160°
Light intensity: ~70 Lumen RED
Light intensity: ~90 Lumen GREEN
Light intensity: ~140 Lumen WHITE
Dimension cooling tube: D10x45mm, flange D12mm
Dimension light cap: D10/12mm, 57.5mm length
Weight: 5g (without cable)
