UniLIGHT - MINI-040-GN mini-Light 4W Position Light, 8mm VERDE

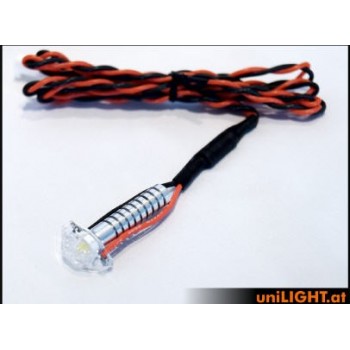

Miniature high-performance light with 4W reference power for smaller models, on tail fins or and thin wings. The mini luminaire is delivered as a ready assembled unit on a CNC manufactured aluminium heatsink and an enclosed polycarbonate cap as covering. The cap is especially designed to scatter light for better visibility. It has to be glued on during installation.

Please note that high-performance LEDs can get very hot, up to 70°C is quite normal. Please check operation temperatures after installation.

Technical Data

Electricity: 4W reference power, 8(12)V, 0.35A
Beam angle: >160°
Light intensity: ~50 Lumen RED
Light intensity: ~80 Lumen GREEN
Light intensity: ~100 Lumen WHITE
Dimension cooling pin: D7x29
Weight: 4g (without cable)
Delivery: ready to use with 1m silicon cable and ready made series resistor for 2S, resistor for 3S enclosed
