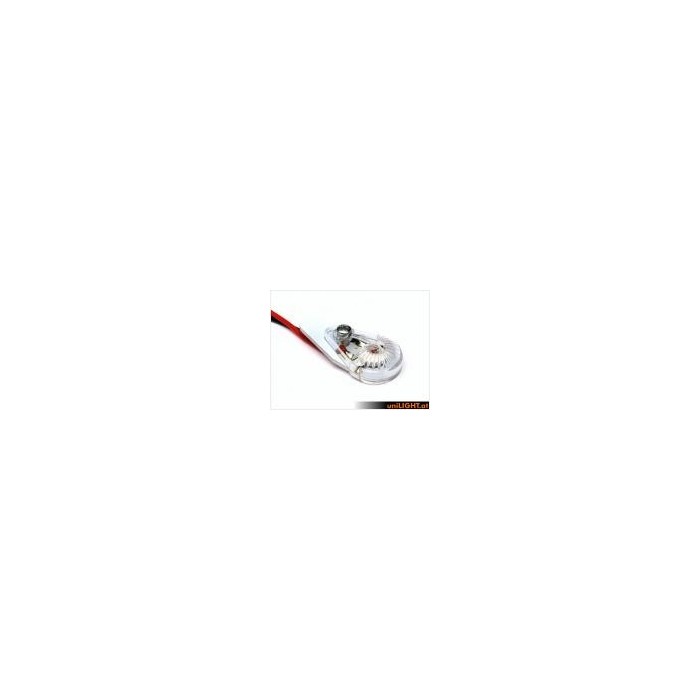

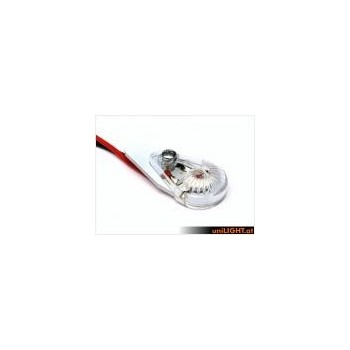

UniLIGHT - PRO16F Strobe Light 8Wx2 Ultra-Power Navigation Light, 16mm, T-Fuse WE

Thin high-performance 16mm light with 8Wx2 and wide beam angle through a special spreading cap. The profile light is delivered as a ready assembled unit on a special, CNC manufactured aluminium PCB and a removable polycarbonate cap as covering. The luminaire is ready to use for operation with 2S LiPo (ca. 8V). With 3S (12V), the enclosed resistor has to be used. Alternatively you can use a 8W-3S adaption cable.

Please note that high-performance LEDs can get very hot, up to 70°C is quite normal. These 8W luminaires are not suitable for continuous operation without additional cooling, operation times of a few minutes are possible. Please check operation temperatures. The luminaires are perfectly suited to be BEACON or ACL lights. The integrated temperature sensor will switch off the light in case of overheating, thus the usage as powerful position light is possible.

Technical Data

Electricity: 8W reference power, 8(12)V, 0.7A
Beam angle: >160°
Light intensity: ~200 Lumen RED
Light intensity: ~400 Lumen WHITE
Dimension base panel: 16x37mm
Overall dimension: 17x38x9mm
Weight: 5g (without cable)
Delivery: ready to use with 1m connection cable and series resistor for 2S, resistor for 3S enclosed, integrated over-temperture fuse
