UniLIGHT - 10mm PIN Strobe Light, 080x2 - WE

Slim navigation light with 500 lumens of light output

Slim LED high-performance strobe light with 8W reference power and x2 chip technology for operation as a very powerful strobe light on a wide range of models. The pen light is delivered pre-assembled and ready for use on a CNC-manufactured aluminum heat sink, and includes 5 high-strength polycarbonate caps for versatile use.
The light is equipped with an integrated thermal fuse that shuts off at 65°C and automatically reactivates after cooling down. Its thermal design is intended for use as a strobe or beacon, and using it as a position light would lead to early shutdown.

Technical Data:

Electrical: 8W reference power,
Overheating protection: the lights will safely turn off/be cycled at 65-70°C
Voltage: 8(12)V, 0.6A
Beam angle: >160°
Light intensity: ~190 lumens RED
Light intensity: ~270 lumens GREEN
Light intensity: ~470 lumens WHITE
Dimensions mounting pin: D10x45mm, flange to cap D12mm
Dimensions of light cap: D10x12.5mm, flange to carrier D12mm
Overall dimensions: D10x12mm, 57.5mm length
Weight: 5g (without cable)

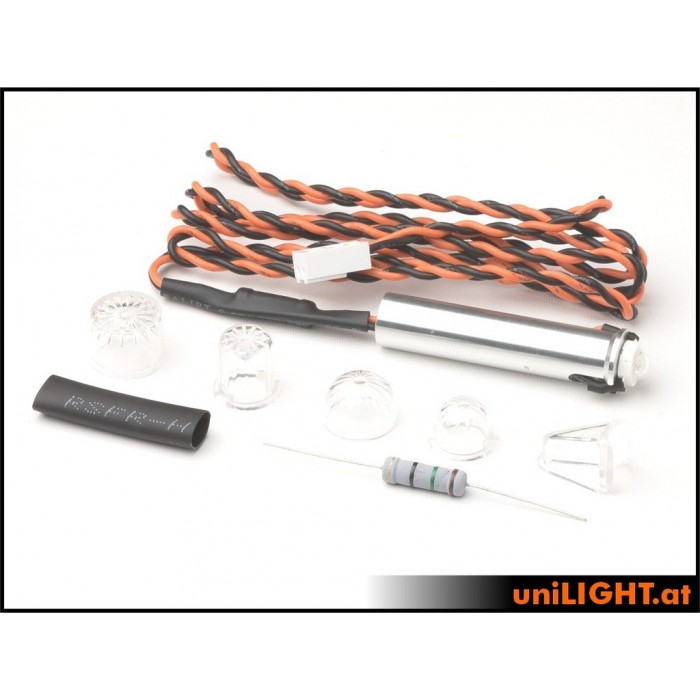

Delivery Content:

Equipped with 1m silicone cable and pre-configured resistor for 2S, use an additional resistor for 3S.
1x 10mm cylinder cap
1x 10mm round cap
1x 13mm cylinder callus
1x 13mm round cap
1x 10mm profile extension
