UniLIGHT - SPOT35F-160x2-WE 16Wx2 Ultra-Power-Spotlight, 35mm, T-Fuse

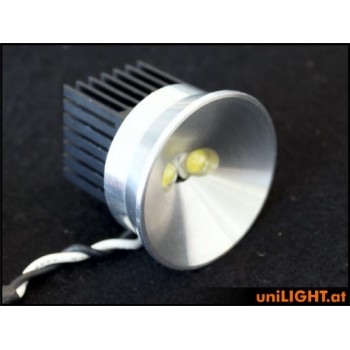

Ultra-power in a very compact, CNC manufactured aluminium reflector (15mm diameter). Absolute innovation concerning luminous power: 4x s.c. cree-chips are bundled in the LED emitter in order to achieve an unprecedented performance in the smallest of spaces. Top performance!

Direct operation with 2S LiPo (8V). Please ensure sufficient cooling air during operation. For the first time in model making, the spotlights are equipped with an integrated overtemperature protection. If the enclosure becomes too warm, the light will be safely switched off.
Without any further cooling, do not operate such spotlights more than 3-4 minutes at a time. Otherwise, the protection will switch off the light or let it blink.

Technical data

Performance: 8Wx2 reference power
Overtemperature protection: switch-off and clocking of the light at 65-70°
Voltage: 2S/8V (3S/12V), use enclosed resistor additionally for 12V!
Electricity: 0.7A
Beam angle: ~110°
Light intensity: ~400 Lumen WHITE
Light intensity: ~350 Lumen WARMWHITE
Dimension: D15x53mm, mounting hole D10mm
Weight: 9g (without cable)
Delivery: ready to use with 1m connection cable for 3S operation
