SAVOX - SC-1268SG+ MG (6,0-8,4V) - 30,0 (8,4V)-0,10 (8,4V) Servocomando standard HV

Dati Tecnici - Technical Data

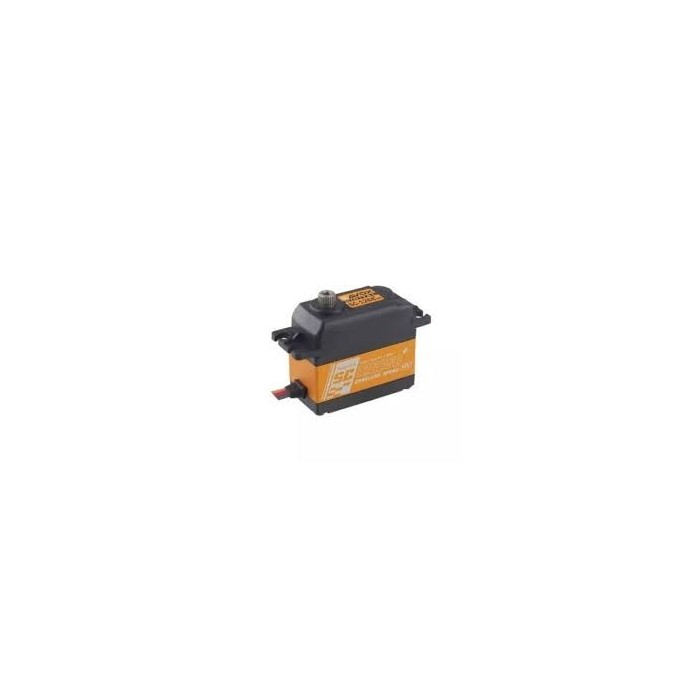

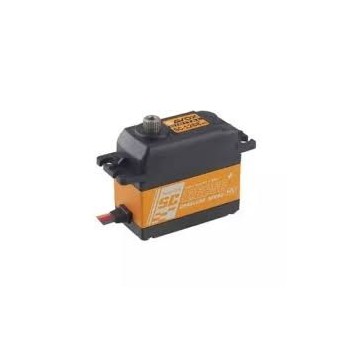

This is the Savox SC-1268+MG High Voltage Ultra Digital Steel Gear Servo. Savox have now released their

'High Voltage' servo line that can be powered by a unregulated LiPo battery! These servos combine leading edge

technology with super high 12 bit (4096) resolution. These servos also feature a redesigned motor/controller

unit, and use a 'bullet proof' all steel gear set for unmatched strength.

Features:

* No Regulator needed
* Higher performance due to increased voltage and improved technology
* Fast response
* Incredible torque
* Increased transit speed
* Increased efficiency
* Water resistant with 4 silicon seals implanted
* Strong and precise-made steel gears
* Suitable for 1/8th nitro racing and large scale aircraft.
* Suitable for 600 and 700 class helicopter swash plate servos.

Specifications:

* Torque: 15,0 (6,0V)-25,0 (7,4V)-30,0 (8,4V)
* Speed: 0,13 (6,0V)-0,11 (7,4V)-0,10 (8,4V)
* Voltage Range: 6,0, 7,4, 8,4 V
* Weight: 62g
* Motor: Coreless
* Gear: Steel
* Case: Aluminum Heatsink
* Output Shaft: 25T Spline (Futaba)
* Dimensions (LxWxH): 40.3x20.2x37.2mm
