SAVOX - SV-1232MG HIGH VOLTAGE MICRO - ALUMINUM SERVO

Dati Tecnici - Technical Data

SV-1232MG HIGH VOLTAGE MICRO - ALUMINUM SERVO


The servo SV-1232MG is a fast high voltage digital servo with coreless motor, 1 ball bearing and metal gears.
It can be used in airplanes, cars, and helicopters, for example as swash plate servo in small helicopters, like the Goblin 380.
The delivery includes the servo as well as the servo arms and the mounting screws.

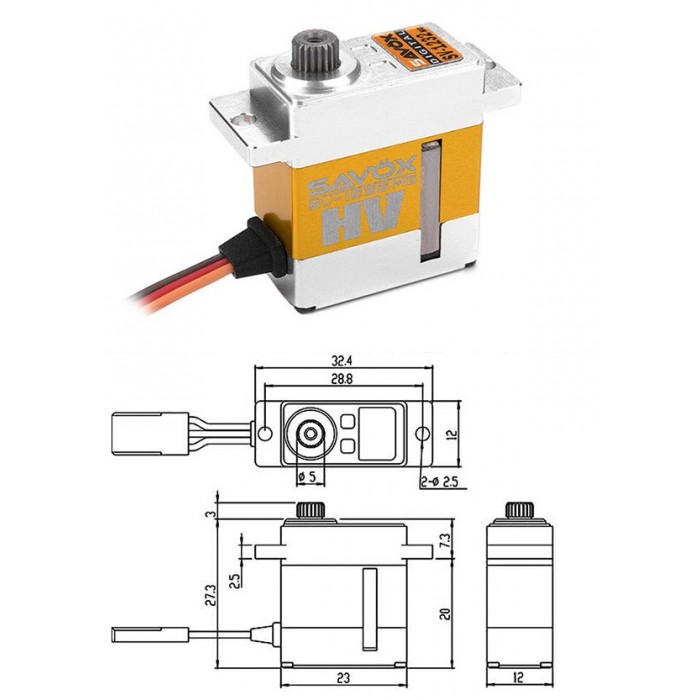

Dimensions(mm): 32.4 x 27.25 x 12
Weight(g): 23.0
Speed: 0.06 sec/60° (6.0V), 0.05 sec/60° (7.4V)
Torque: 4 Kg.cm (6.0V), 5 Kg.cm (7.4V)
Frequency : 333 Hz
Longueur impulsion : 1520 µs
Motor: coreless
Gear: Metal
Case: Full Aluminum
