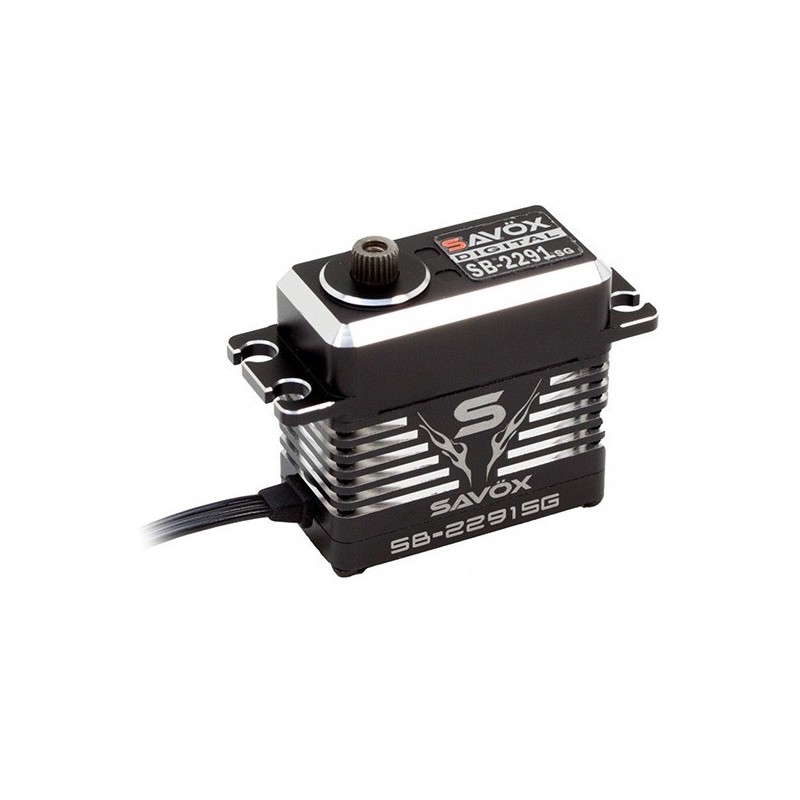

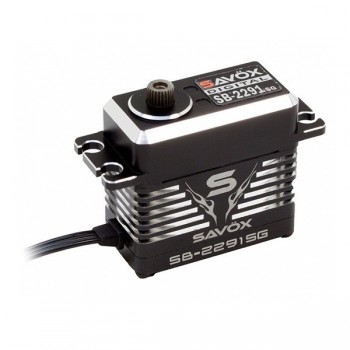

SAVOX - SB-2291SG - HV Digital Servo

SAVOX SB-2291SG - HV Digital Servo

Servo Technology:    Digital High Voltage
Input Voltage (V):     4.8 V ~ 8.4 V
Motor Type:    Brushless Motor
Gear Material:    Steel Gears
Ball Beared:    Ball Beared
Servo Case:    Full Aluminum Case
Length (mm):    40.3 mm
Width (mm):    20.2 mm
Height (mm):    38.7 mm
Weight (g):    79 g
Speed 60°/Sec @ 7.4V:    0.050 sec/60 deg
Speed 60°/Sec @ 8.4V:    0.042 sec/60 deg
Torque kg/cm @ 7.4V:    18.0kg/250.0 oz-in
Torque kg/cm @ 8.4V:    25.0kg/347.2 oz-in
Spline size:    25T Spline
