JP-Hobby - ER-150S Tricycle Full Set with Brakes (Sebart Avanti S, S FC, Krill Ares L, Xtreme Vixen)

Electric Retract ER-150S (Sebart Avanti S 2.0)

> Model Weight: until 20kg
> Struts diameter: 18mm
> Mounting diameter: 13mm (main) - 15mm (nose)
> Angle: 3x 90 degrees
> Rotation direction: 3x Outside (opposite jack side)
> Mounting: 3x Low
> Wheels: 2x 86mm (with brakes) + 1x 63mm

CNC Machined aluminium articulated and mechanical suspended « scale » electric landing complete gear set including 86 and 63mm wheels with brakes system and 3 retracts with a JP Hobby V2 version controller retract box which includes an electrical magnetic brakes controller. Main gear and single nose gear. For planes up to 20kg.

Specifications

Materials: Aluminium

Suspension: mechanical

Wheels: ball bearings mounted

For planes up to 20kg

Servo Plate with control for threaded rod and ball joints

Technical Specifications

Struts diameter: 18mm

Mounting Strusts diameter: 13mm (Main) - 15mm (Nose)

Main gear wheels diameter: 86mm

Nose gear wheel diameter: 63mm

Wheels axle diameter: 8mm (Main) - 6mm (Nose)

Weight: 1484g (for the complete set including the 3 struts, 3 retracts, wheels and the controller)

Dimensions: for detailed dimensions, please refer to the pictures

Working voltage: 7.4-8.4V (2S LiPo)

Brakes working voltage: 7.2-30V

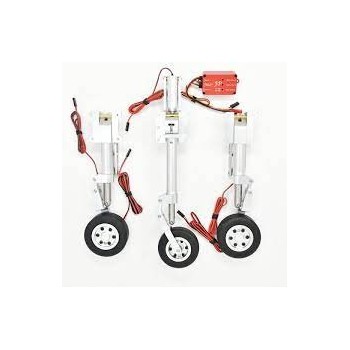

Content

2x Scale metal struts for main landing gear equiped with 86mm wheels & brakes system

1x Scale metal strut for nose gear equiped with 63mm wheel and plate

2x Electric Retracts JP Hobby ER-150S 13mm (20kg/Low/Outside)

1x Electric Nose Retract JP Hobby ER-150S 15mm (20kg/Low/Outside)

1x JP Hobby ER-150 V2 version All Integrated controller retract box (doors closed when the gear is down)

Requires

2 cells battery

Nose direction servo. Servo size for steering nose wheel : 40x 20x 37mm size with 3.8 to 8kg torque.
