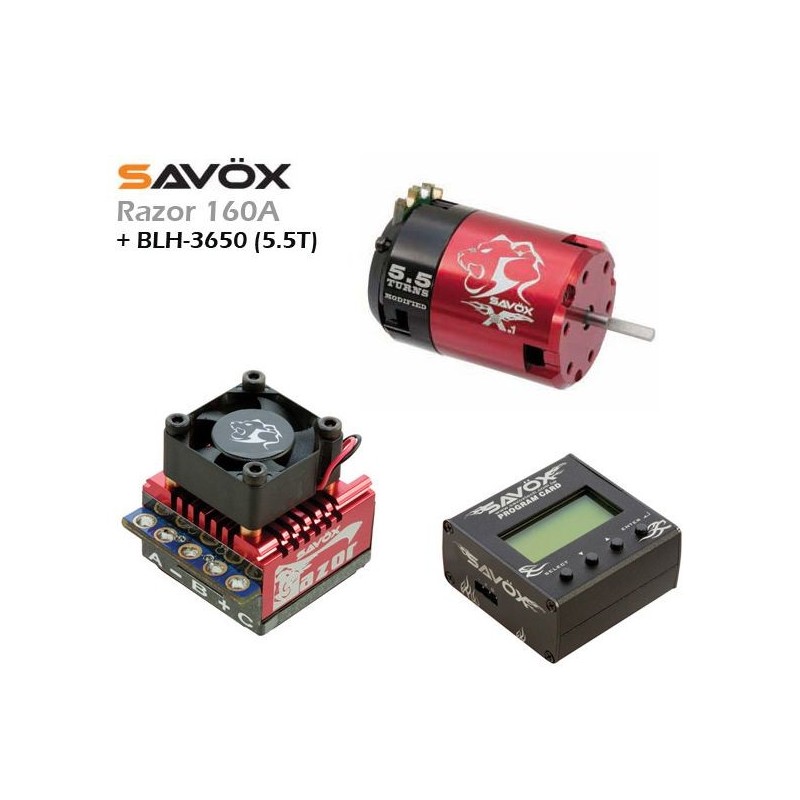

Savox - Combo ESC (RAZOR 160A) + PROG. CARD + BLH-3650 (5.5T) Sensored

Savox Razor 160A Electric Speed Controller + BLH-3650 (9.5T)

Nuova linea Savox di motori brushless e ESC regolatori di velocità  per automodelli on-road e off-road 1/10 e 1/12.
Combo con motore Savox BLH-3650 Sensored per buggy per 1/10 e regolatore Savox RAZOR da 160A continui (400A di picco) e Program Card.

Le caratteristiche principali del RAZOR sono:
regolatore per motori brushless sensored con carico continuo 160A e 400A di punta
tensione d'ingresso da 7,4V - 9,9V per batterie 2S o 3S LiPo LiFe
modalità  di guida in avanti, freno, retromarcia (commutabile)
dimensioni piastra di piano solo 31,2 mm x 32,6 millimetri
altezza di soli 21,3 senza ventola, e cavi della ventola con peso solo 88 g
per motori da 4.5 T, BEC 6V/3A, 14 parametri regolabili (tempi, i tempi turbo, Delay Turbo, Turbo Interval, punzone, accelerazione, campo neutro, inversori di spinta, resistenza freno, freno, tipo di scatto, tipo di batteria, Cut-off, surriscaldamento) compreso di program card.


ESC Specifications:
Classes: 1/12 & 1/10 scale
Weight: 105g incl. wires & fan
Modes: Fwd/Brk, Fwd/Brk/Rev, Fwd/Rev
Fwd/Paused/Rev
Continuous current: 160A
Peak current: 400A
BEC: 6v/3A
Input voltage: 7.4v-9.9v (2S Lipo)
Motor limit: 540 size 4.5T sensored
Footprint: 31.3x32.6mm
Height: 27mm w/o fan, 37mm w/fan
Programmable using programming box


The compact programming box is included with the speed controller to make quick and easy set-up adjustment in just a few seconds.


Adjustable Parameters:
1. Timing
2. Turbo timing
3. Turbo delay
4. Turbo interval
5. Punch
6. Acceleration
7. Zero range (deadband)
8. Reverse force
9. Drag brake
10. Brake force
11. Running mode
12. Battery type
13. Battery protection
14. Overheat protection



BRUSHLESS INNER RUNNER MOTOR / BLH-3650 4.5T
Motor KV(RPM/V)?4.5T
Weight?180.0g(6.4oz)
Dimension(mm) : Ø35.8*52.9(Ø1.41"*2.08")
Shaft size(mm): Ø3.17*59.43
Max. current(A): 79
Max. power(W) : 584
Voltage : 4-12 NiCd/NiMH(2s LiPo)


BRUSHLESS INNER RUNNER MOTOR / BLH-3650 5.5T
Motor KV(RPM/V)?5.5T
Weight?180.0g(6.4oz)
Dimension(mm) : Ø35.8*52.9(Ø1.41"*2.08")
Shaft size(mm): Ø3.17*59.43
Max. current(A): 65
Max. power(W) : 481
Voltage : 4-12 NiCd/NiMH(2s LiPo)


BRUSHLESS INNER RUNNER MOTOR / BLH-3650 6.5T
Motor KV(RPM/V)?6.5T
Weight?180.0g(6.4oz)
Dimension(mm) : Ø35.8*52.9(Ø1.41"*2.08")
Shaft size(mm): Ø3.17*59.43
Max. current(A): 55
Max. power(W) : 407
Voltage : 4-12 NiCd/NiMH(2s LiPo)


BRUSHLESS INNER RUNNER MOTOR / BLH-3650 7.5T
Motor KV(RPM/V)?7.5T
Weight?180.0g(6.4oz)
Dimension(mm) : Ø35.8*52.9(Ø1.41"*2.08")
Shaft size(mm): Ø3.17*59.43
Max. current(A): 50
Max. power(W) : 370
Voltage : 4-12 NiCd/NiMH(2s LiPo)


BRUSHLESS INNER RUNNER MOTOR / BLH-3650 8.5T
Motor KV(RPM/V)?8.5T
Weight?180.0g(6.4oz)
Dimension(mm) : Ø35.8*52.9(Ø1.41"*2.08")
Shaft size(mm): Ø3.17*59.43
Max. current(A): 48
Max. power(W) : 355
Voltage : 4-12 NiCd/NiMH(2s LiPo)


BRUSHLESS INNER RUNNER MOTOR / BLH-3650 9.5T
Motor KV(RPM/V)?9.5T
Weight?180.0g(6.4oz)
Dimension(mm) : Ø35.8*52.9(Ø1.41"*2.08")
Shaft size(mm): Ø3.17*59.43
Max. current(A): 45
Max. power(W) : 333
Voltage : 4-12 NiCd/NiMH(2s LiPo)


BRUSHLESS INNER RUNNER MOTOR / BLH-3650 10.5T
Motor KV(RPM/V)?10.5T
Weight?180.0g(6.4oz)
Dimension(mm) : Ø35.8*52.9(Ø1.41"*2.08")
Shaft size(mm): Ø3.17*59.43
Max. current(A): 42
Max. power(W) : 310
Voltage : 4-12 NiCd/NiMH(2s LiPo)


BRUSHLESS INNER RUNNER MOTOR / BLH-3650 13.5T
Motor KV(RPM/V)?13.5T
Weight?180.0g(6.4oz)
Dimension(mm) : Ø35.8*52.9(Ø1.41"*2.08")
Shaft size(mm): Ø3.17*59.43
Max. current(A): 33
Max. power(W) : 244
Voltage : 4-12 NiCd/NiMH(2s LiPo)


BRUSHLESS INNER RUNNER MOTOR / BLH-3650 17.5T
Motor KV(RPM/V)?17.5T
Weight?180.0g(6.4oz)
Dimension(mm) : Ø35.8*52.9(Ø1.41"*2.08")
Shaft size(mm): Ø3.17*59.43
Max. current(A): 25
Max. power(W) : 185
Voltage : 4-12 NiCd/NiMH(2s LiPo)


BRUSHLESS INNER RUNNER MOTOR / BLH-3650 21.5T
Motor KV(RPM/V)?21.5T
Weight?180.0g(6.4oz)
Dimension(mm) : Ø35.8*52.9(Ø1.41"*2.08")
Shaft size(mm): Ø3.17*59.43
Max. current(A): 20
Max. power(W) : 148
Voltage : 4-12 NiCd/NiMH(2s LiPo)


BRUSHLESS INNER RUNNER MOTOR / BLH-3650 23.5T
Motor KV(RPM/V)?23.5T
Weight?180.0g(6.4oz)
Dimension(mm) : Ø35.8*52.9(Ø1.41"*2.08")
Shaft size(mm): Ø3.17*59.43
Max. current(A): 18
Max. power(W) : 133
Voltage : 4-12 NiCd/NiMH(2s LiPo)
