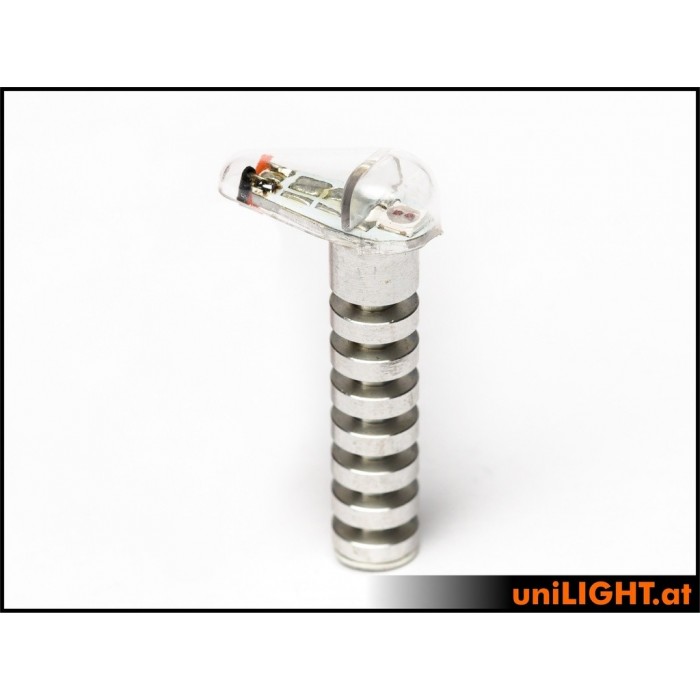

UniLIGHT - 7mm PRO Navigation Light, 2Wx2-GN

Extreme small navigation light with new COB chip generation. Little reduced power output to fit in smallest aircrafts and helicopters.

The profiled polycarbonate cap is delivered simply attached. It can be varnished separately, is highly transparent and unbreakable. The assembly of the lamp is astonishingly easy: with a simple surface mount, all you need is drill a 7mm hole. In this way, the luminaire can be also mounted on smaller wing tips or fuselage. The cap must be glued after the final assembly.

The luminaire is ready to use for operation with 2S LiPo (ca. 8V). With 3S (12V), the enclosed resistor has to be added. Please note that high-performance LEDs can get very hot, up to 70°C is quite normal. These lamps with heatsink cases are suitable for continuous operation if an air flow (during flight) is possible. If this is not the case, the duty cycle of 5-10 minutes should not be exceeded. Please check operation temperatures after installation.

Miniature navigation light with new COB chip generation, very small but powerful like standard lights, fits optically onto the smallest models with big scale factors.

Technical Data:

Electricity: 2Wx2 reference power,
Voltage: 8(12)V, 0.17A
Beam angle: >120°
Light intensity: ~50 Lumen RED
Light intensity: ~80 Lumen GREEN
Light intensity: ~120 Lumen WHITE
Dimension: 19x8x6
Dimension cooling pin: D7x30
Weight: 4g (without cable)
