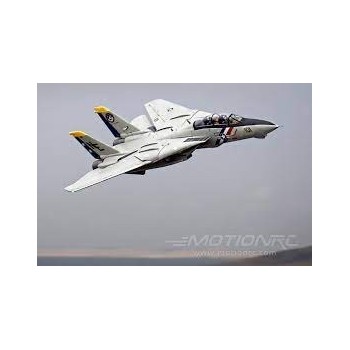

Freewing - F-14 Tomcat Twin 80mm EDF Jet - PNP

Wingspan

1016mm retracted 1550mm extended / 40in retracted 61in extended

Length

1498mm / 59in

Weight

4160g without battery / 147oz

CG (Center of Gravity)

393mm measured back from the intake

Power System

2x 3530-1680Kv Brushless Outrunner Motor

Electronic Speed Control

2x 80A ESCs, 8A UBEC, EC5 Connector

Propeller / EDF

2x 80mm Metal EDF with 12 Blade Fan

Servos

9g hybrid gear standard with 900mm lead : nose gear door
9g hybrid gear standard with 800mm : nose gear steering
17g metal gear standard with 700mm lead : left aileron, right aileron
23g metal gear reverse with 700mm lead : right elevator
23g metal gear standard with 700mm lead : left elevator
17g metal gear standard with 500mm lead : left flap
17g metal gear reverse with 500mm lead : right flap
17g metal gear standard with 200mm lead : left rudder, right rudder

Landing Gear

Electronic retractable main gear and steerable nose gear with all metal shock absorbing struts

Required Battery

2x 6S 22.2V 4000mAh LiPo (required)

Required Radio

7+ Channel full range 2.4Ghz (using pre-installed mixing board)

Ailerons

Yes

Elevator

Yes

Rudder

Yes

Flaps

Yes

Lights

Yes (landing light, 9x LEDs)

Hinge Type

Nylon gapless hinges

Material

EPO Foam

Skill Level

Advanced/Expert

Build Time

2 Hours

Recommended Environment

Minimum 300 foot runway, recommended pavement, mat, or short turf
