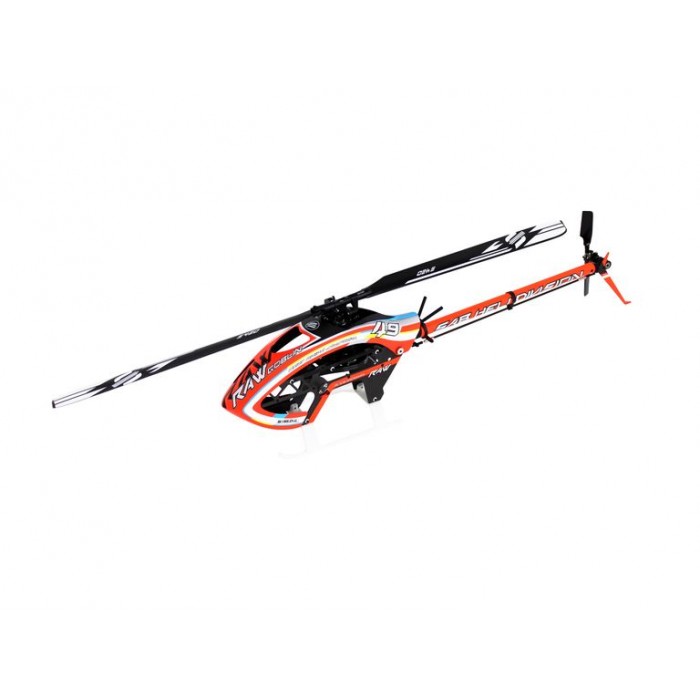

SAB - Elicottero Goblin RAW 420 Competition

Goblin RAW 420

Raw 420 Main Features:

Direct Drive Motor (Competition motor included)

New S Line blades (420mm and 70mm included)

Quick release battery tray with built-in connectors

10mm one way bearing integrated into the motor

Zytel HTN resin blade grip arms (sacrificial)

The canopy does not need to be removed to replace batteries

Neon yellow color for best visibility (available initially in yellow only)

Carbon fiber molded boom as an option also available

Raw 420 Specifications:

Airframe weight: 1000 grams (with motor and blades)

Main rotor diameter 935mm (with 420mm blades)

Main blade length 380 to 420mm

Tail rotor diameter 190mm (with 70mm tail blades)

Tail blade length 60 to 70mm

Micro size cyclic servos (23mm)

Mini size tail servo (35mm)

Maximum battery size 40x54x135mm

Recommended battery 6s 2200/2700 mAh

Recommended battery weight 350-420 grams

Recommended ESC 60 ( 70-80A is required only for hard 3D flight with temperatures above 30°C)

Tail rotor ratio 4:1

8mm main shaft

5mm tail shaft

Caratteristiche principali elicottero

Configurazione

420

Codice prodotto

SG421

Diametro rotore principale

935mm (con pale principali da 420mm)

Lunghezza pale principali

420mm

Diametro rotore di coda

190mm (con palini di coda da 70mm)

Lunghezza pale di coda

60 a 70mm

Diametro albero principale

10mm

Diametro albero di coda

5mm

Peso

1000gr (con motore e pale)

Caratteristiche secondarie elicottero

Servo ciclico

Micro 23mm

Servo di coda

Mini 35mm

Regolatore di giri

60-80A

Vano batteria

40 x 54 x 135mm

Batteria

6S 2200-2700mAh

Rapportature

1:1
