JP-Hobby - ER-120 TRICYCLE FULL SET WITH BRAKES (SEBART MB-339 XS 1.9) + CONTROLLER

JP Hobby ER-120 Tricycle full set with Brakes and Controller for Sebart MB-339 XS 1.9 model

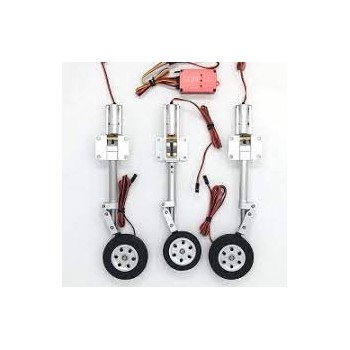

CNC Machined aluminium articulated and mechanical suspended « scale » electric landing complete gear set including 50 and 65mm wheels with brakes system and 3 retracts with a JP Hobby V2 version controller retract box which includes an electrical magnetic brake controller. Main gear and single nose gear. For planes up to 12kg.

Specifications

Materials: Aluminium

Suspension: mechanical

Wheels: ball bearings mounted

For planes up to 12kg

Plate with control for threaded rod and ball joints

Technical Specifications

Struts diameter: 12mm

Main gear wheels diameter: 65mm

Nose gear wheel diameter: 50mm

Wheels axle diameter: 5mm

Weight: 750g (for the complete set including the 3 struts, 3 retracts, wheels and the controller)

Dimensions: for detailed dimensions, please refer to the pictures

Working voltage: 5-8.4V (2S LiPo)

Brakes working voltage: 7.2-30V

Electric Retract ER-120 (Sebart MB-339 XS 1.9)

> Model Weight: until 12kg
> Struts diameter: 12mm
> Angle: 3x 90 degrees
> Rotation direction: 2x Inside (jack side) + 1x Outside (opposite jack side)
> Mounting: 3x Low
> Wheels: 2x 65mm (with brakes) + 1x 50mm
