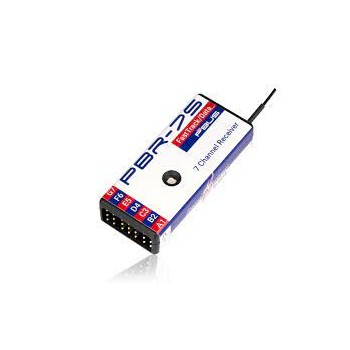

Powerbox - PBR-7S

Features

7 Channel 2.4GHz Receiver

Extreme interference rejection

Ultra-long range

Option of iGyro SAT

Integral telemetry / servo bus (P²BUS)

High-performance real-time telemetry

Reception quality and airborne battery voltage available via telemetry as standard

Auxiliary output can be configured as Channel 8 or as serial interface (S.BUS or SRXL)

Parameters for all functions can be set from the transmitter

Technical Data

Operating voltage

4.0V - 9.0V

Supported RC systems

CORE

Channels

26

Servo sockets

7 (8)

Servo signal resolution

4096 Steps

Integral gyro system

optional with iGyro SAT

Supported telemetry systems

P²BUS

Dimensions

52 x 22 x 12 mm

Weight

12g

Temperature range

-30°C to +85°C
